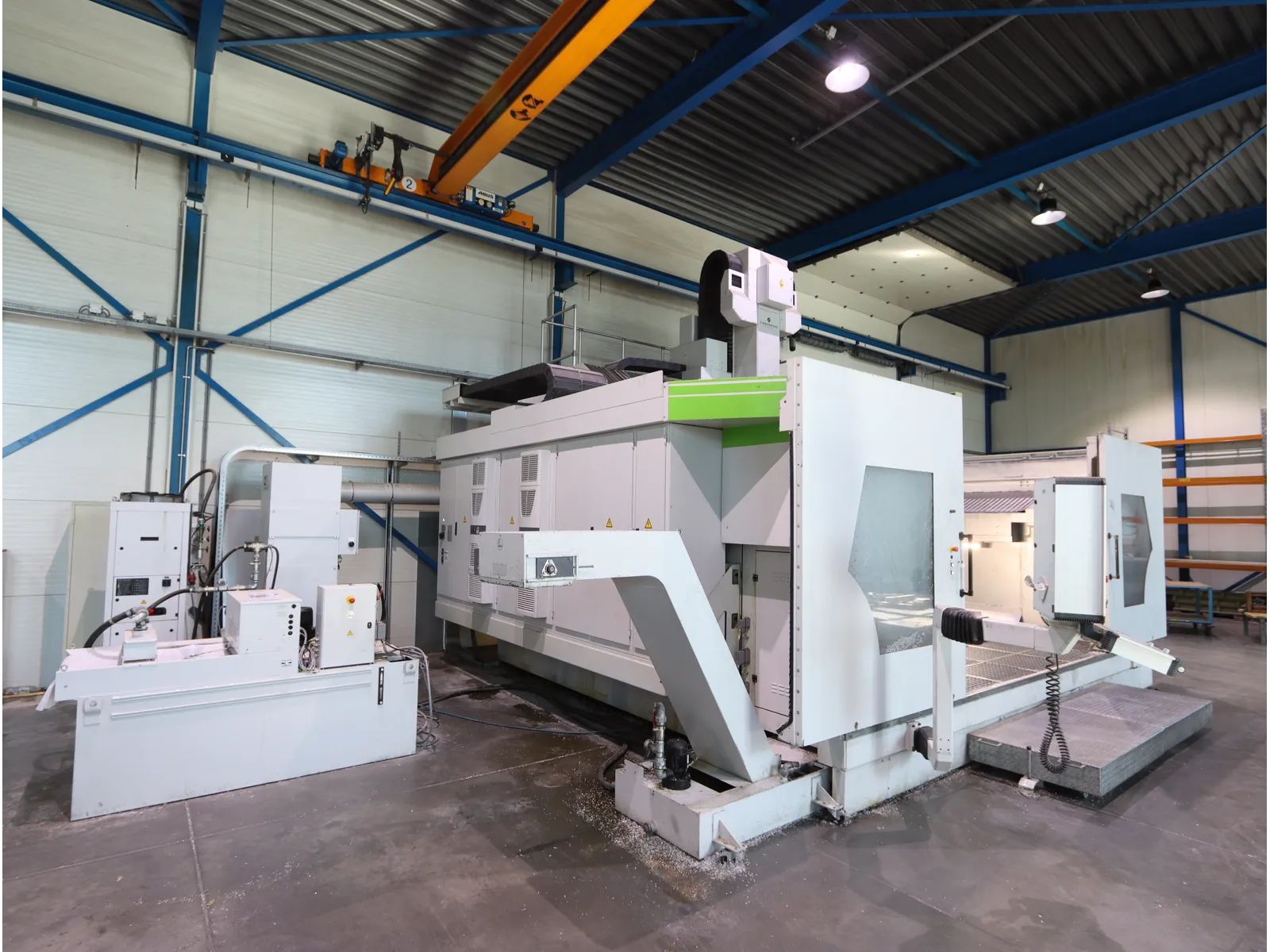

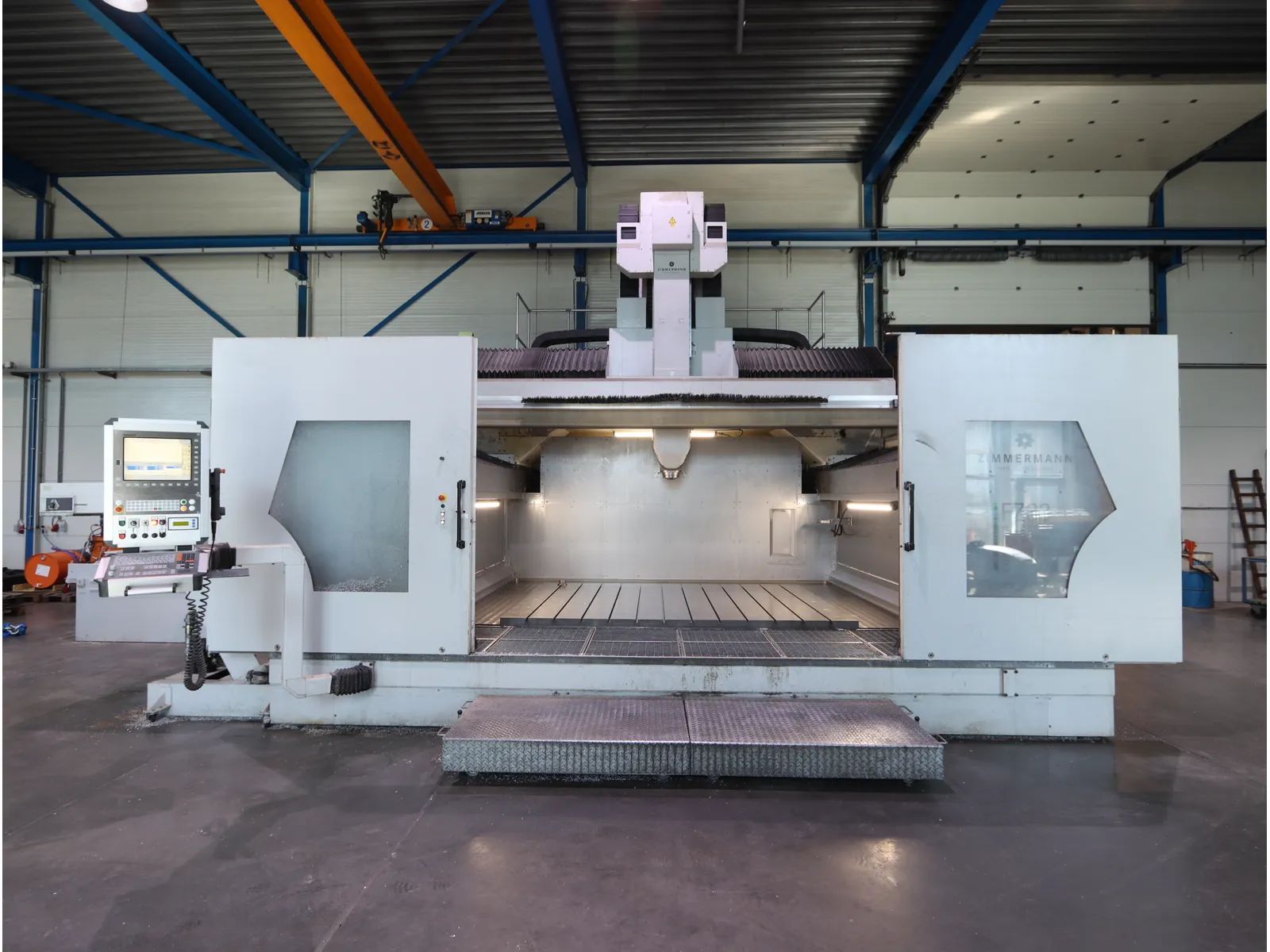

Planer Type Machining Center - 5 Axis
NEW ADDITION
- Stock number
- 7-47272
- Make
- ZIMMERMANN
- Model
- FZ33c
- Control

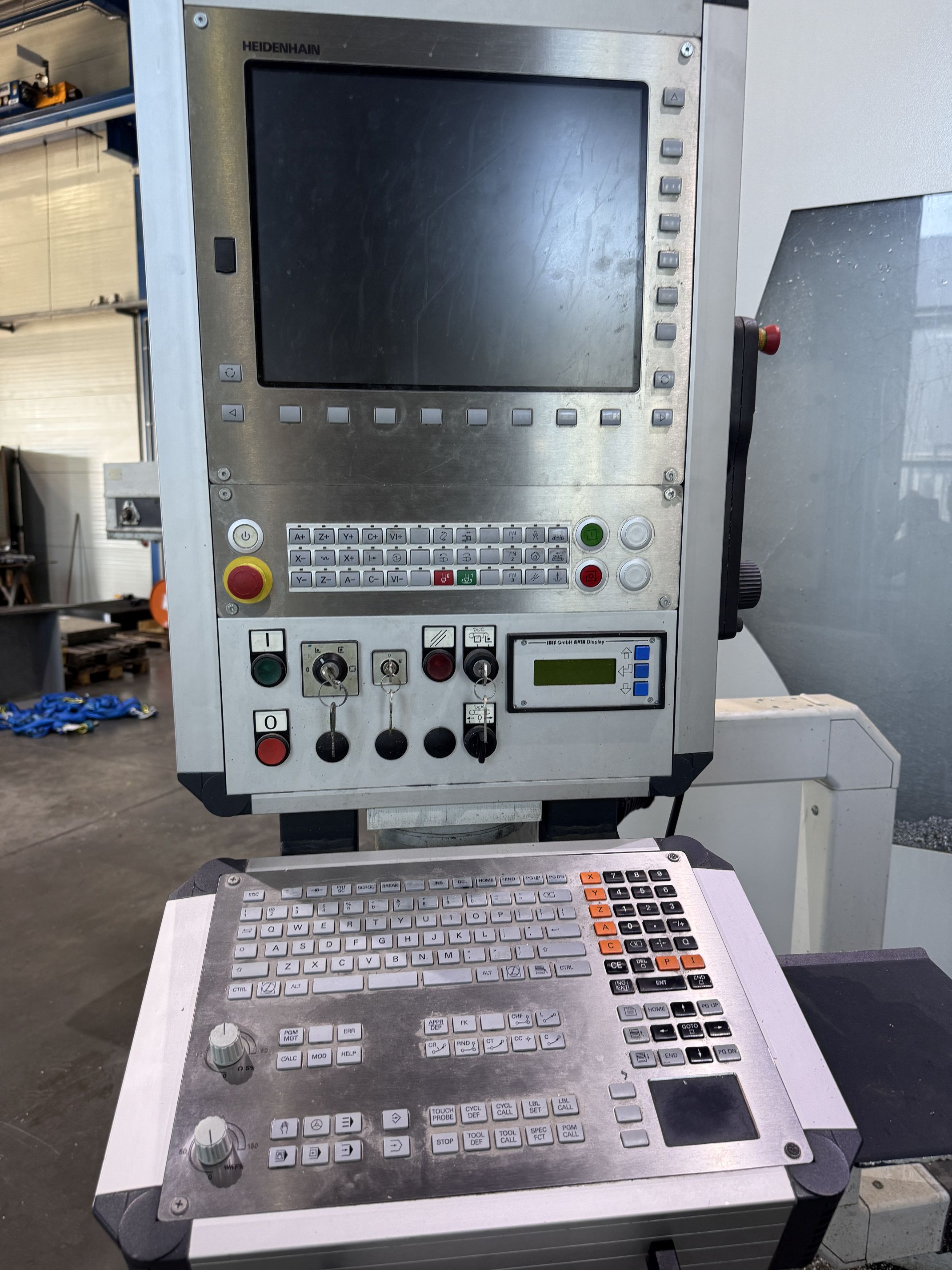

- CNC controls HEIDENHAIN iTNC 530
- Year of construction
- 2014
- basic design
- gantry type
- x-axis travel
- 2500
- mm
- X-axis single table
- 3000
- mm
- z-axis travel
- 1250
- mm
- Rotation range A-axis +
- 110
- °
- Rotation range A-axis -
- 110
- °
- rotation range C-axis +-
- 360
- °
- Number of controlled axes
- 5
- clamping surface (left-right)
- 3250
- mm
- clamping surface (front-back)
- 2500
- mm
- spindle type
- Fork head
- spindle revolutions (max)
- 22000
- /min
- taper fixture
- HSK A63
- drive power (max)
- 60
- kW
- torque (max.)
- 95
- Nm
- number of positions
- 50
- mains power supply
- 190
- kVA
- mains voltage
- 400
- V
- mains frequency
- 50
- Hz
- coolant unit
- yes
- closed cabin
- yes
- chip conveyor
- yes
Planer Type Machining Center - 5 Axis
basic design

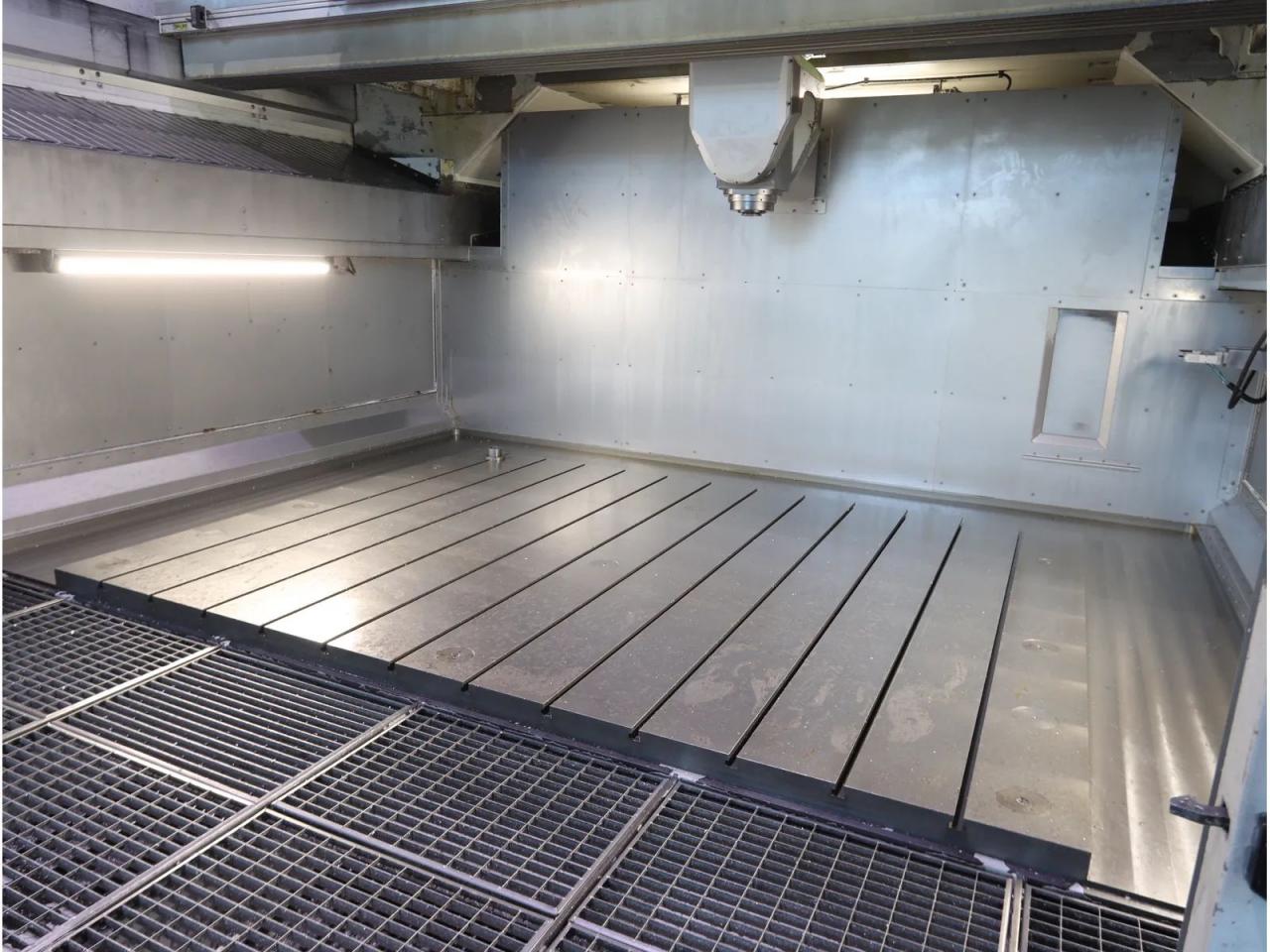

Working Range -milling-

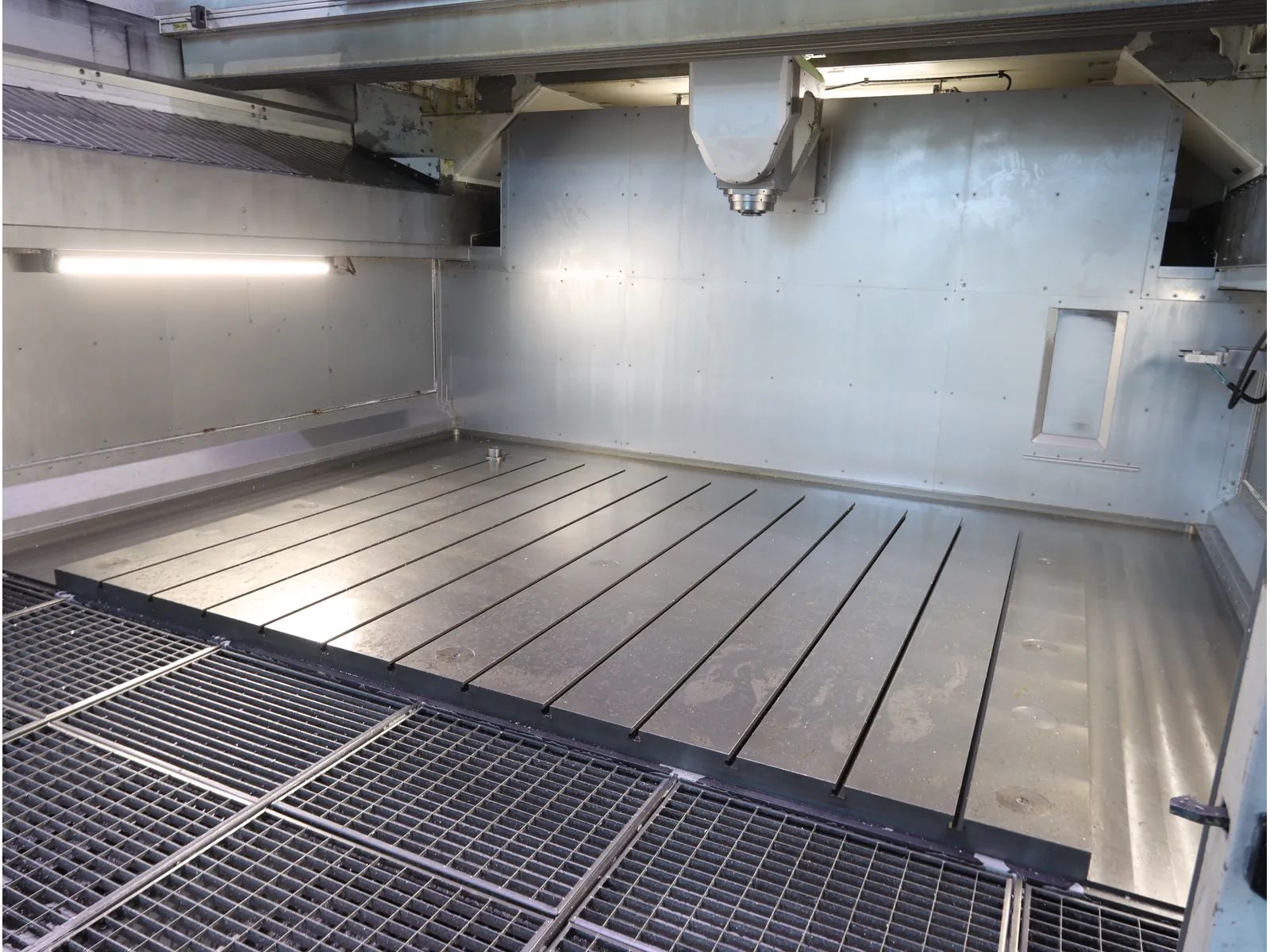

Floor Plate
working spindle / head
Tool magazine
Electrical specifications
attachments
Technical description

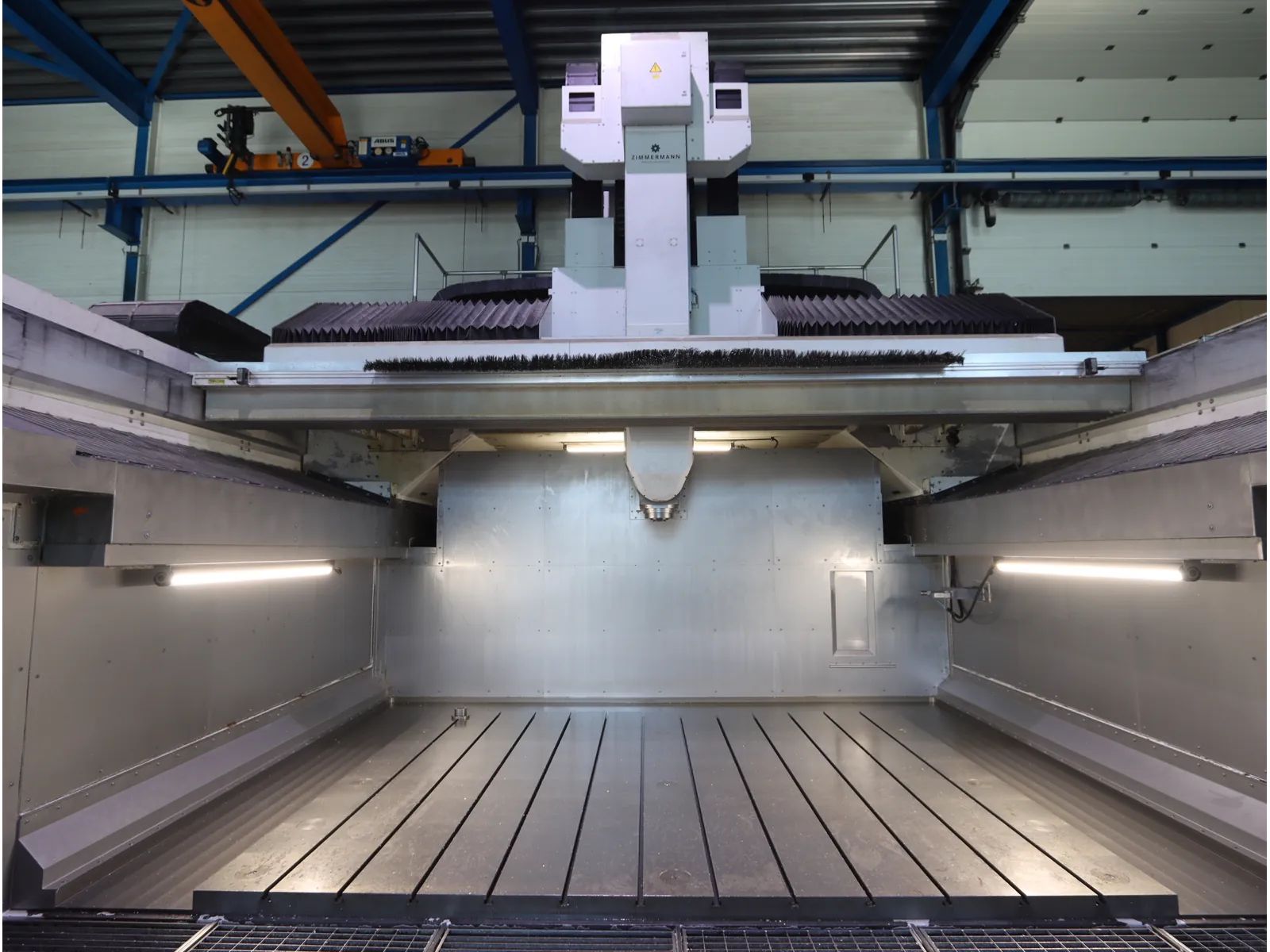

5-axis gantry milling machine with VH30 milling head featuring A-axis and C-axis (A-axis ±110°, C-axis 360°), suitable for simultaneous 5-axis machining.

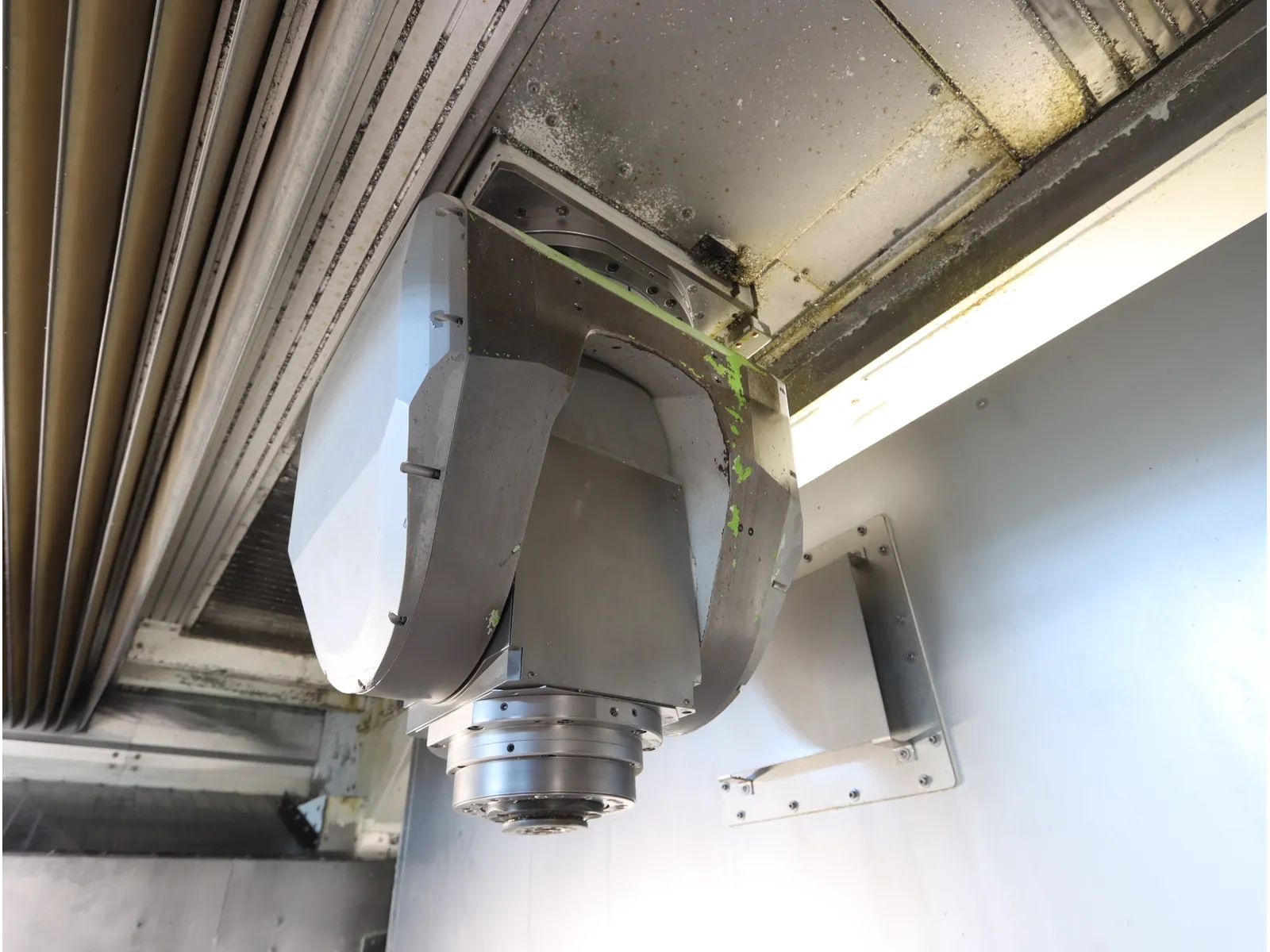

Equipped with a high-frequency spindle with HSK 63A tool interface, max. speed 22,000 rpm, power output 60 kW (constant from approx. 6,000 rpm) and max. torque approx. 95 Nm.

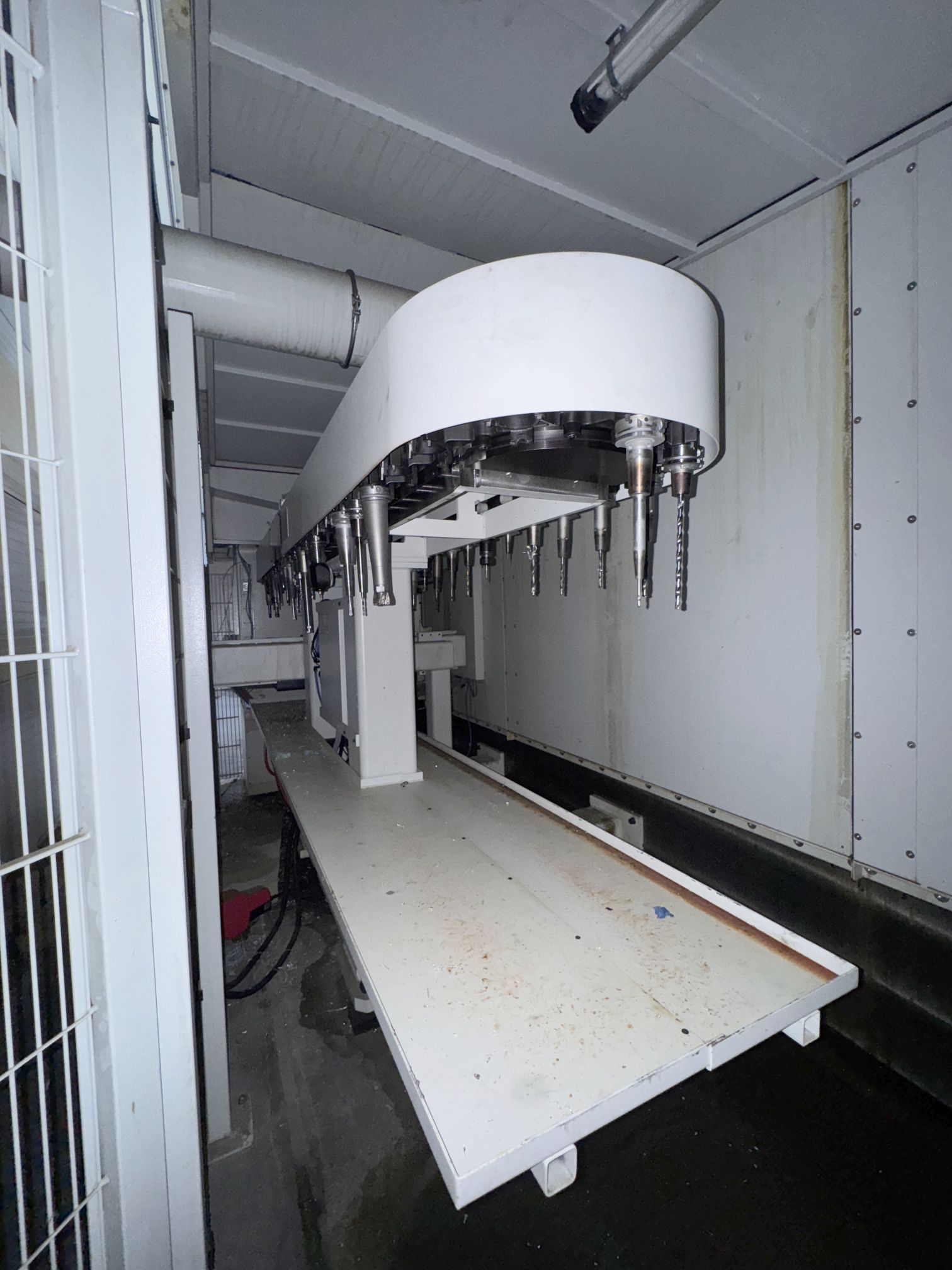

Automatic tool changer by KTC Handlingstechnik, type: ATC /HSK-A63 (50 positions) with carousel magazine.

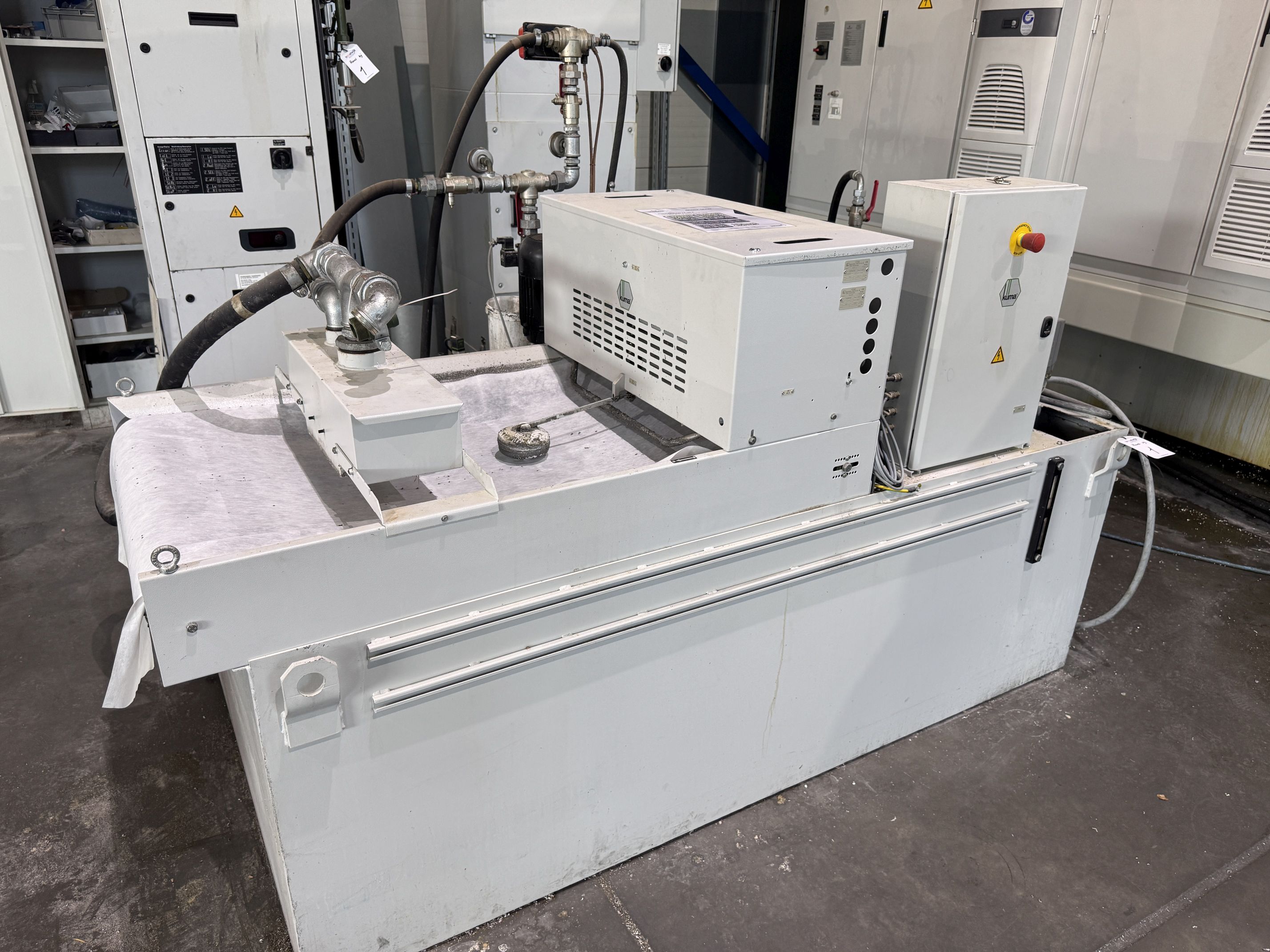

(1x) KÜMA coolant/filter system type KF1/515WB,
(1x) KÜMA filter unit type BF Gr.3,
(1x) KÜMA pump unit type FA10/03,
(1x) H.I.B Systemtechnik industrial chiller type RKH/W-14300 (R134a),

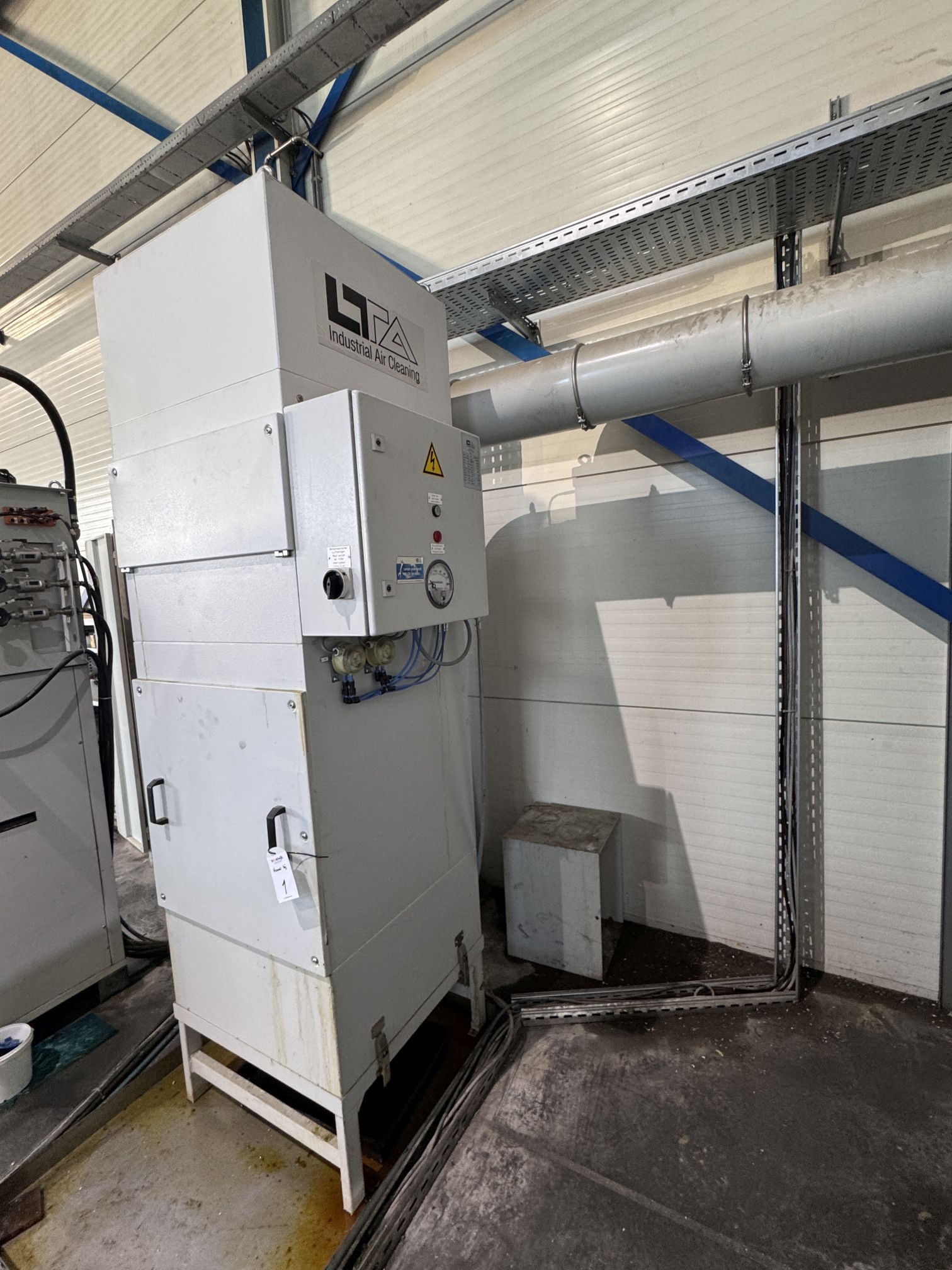

(1x) LTA Industrial Air Cleaning oil mist extraction system type AC 2000 H solid particle filter.
Equipped with a high-frequency spindle with HSK 63A tool interface, max. speed 22,000 rpm, power output 60 kW (constant from approx. 6,000 rpm) and max. torque approx. 95 Nm.
Automatic tool changer by KTC Handlingstechnik, type: ATC /HSK-A63 (50 positions) with carousel magazine.
(1x) KÜMA coolant/filter system type KF1/515WB,
(1x) KÜMA filter unit type BF Gr.3,
(1x) KÜMA pump unit type FA10/03,
(1x) H.I.B Systemtechnik industrial chiller type RKH/W-14300 (R134a),
(1x) LTA Industrial Air Cleaning oil mist extraction system type AC 2000 H solid particle filter.
Technical data sheet
